**NEW DK Pricing - Starting October 1st we shifted all Dan Kubin machine pricing lower! Thanks to Dan for some clever engineering and milling updates / investments, we are now able to shift all DK pricing down. Times are tough and tariffs are crazy right now...thankfully we produce all DK machines in the USA and have the ability to pass the savings onto our customers.

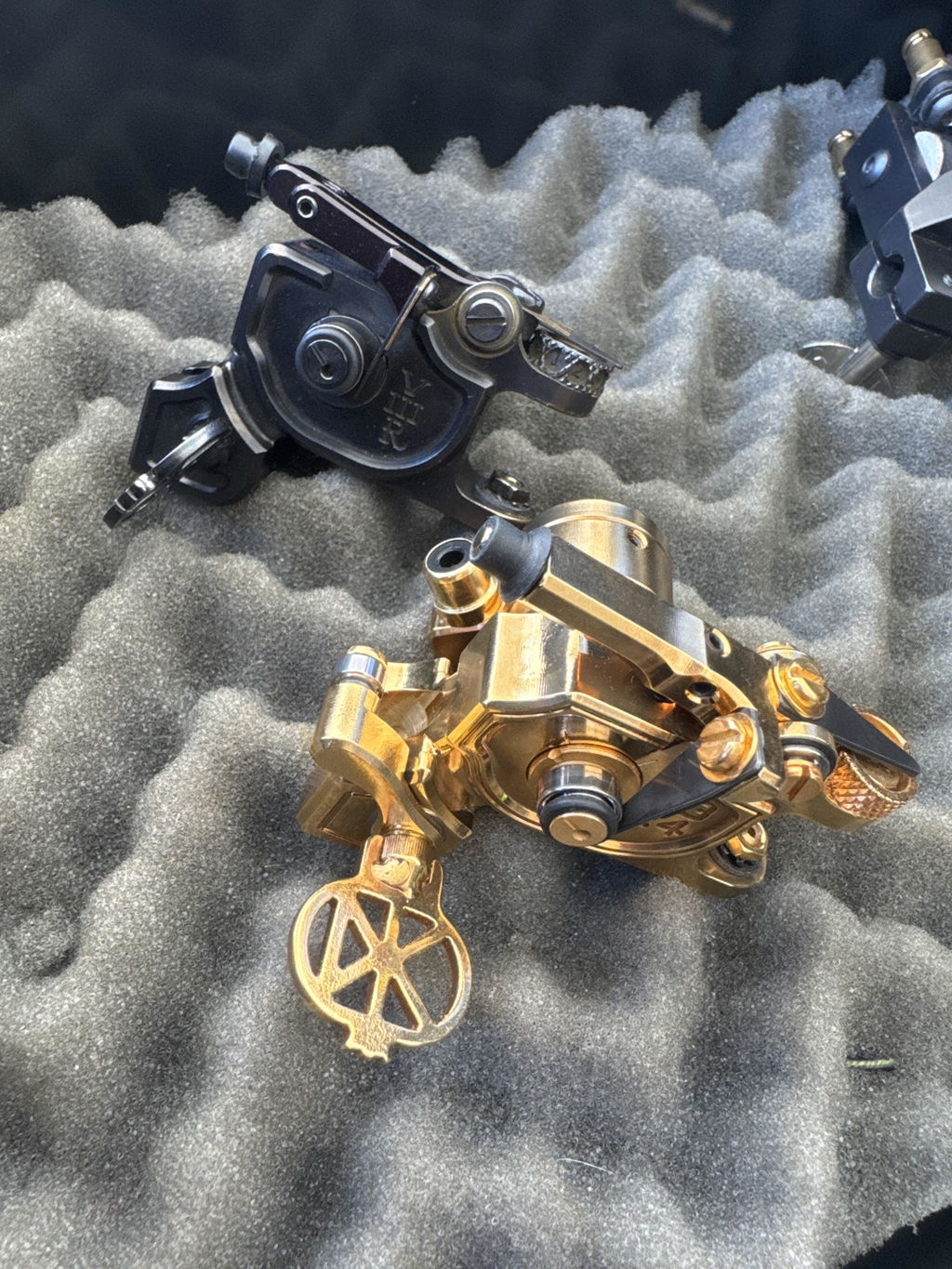

Dan Kubin V3/24 Sidewinder!

Highlights:

• DK Thumbscrew, new Armature Bar, and updated Stroke Wheel for improved performance
• The renowned rotary liner.  Effortlessly sink any size line by just grazing the skin.
• The motor is the same as the  V2-V4 and V7 Sidewinder, which has proven the test of time.  It has been a favorite of the long time Sidewinder collectors.
• Vice-Lock that easily tightens on nearly any tube
• Great for all varieties of Line Work or as a Fast Shader/Packer

• Timing mark on the cam and frame for setting the impact screw. (Just like the V5 and V6)

• Marked stroke dial so you can easily play with the stroke without fear of losing that sweet spot.  You can’t make it too long or too short

Machine Setup:

• Standard Needle on Bar:
  • Needle Bar Tensioner - when setting up your needle and tube, position needle tensioner in desired position depending on the amount of tension you want to add to the needle bar. Adjust position by loosening the thumbscrew and then tightening when you reach desired tension.
  • Rubber Band alternative setup - Loosen / remove thumbscrew to take the needle tensioner off. Then when setting up the machine, wrap a thick rubber band around the motor cap and across the front of the machine to add needle bar tension. It is recommended that you use Thick Rubber Bands and Dan's Perfect Nipples.

• Cartridges: wrap a rubber band around the motor cap and over the top of the armature bar to counteract the cartridge's upward tension. Thick or standard rubber bands both work, it will just depend on the tension of the cartridge membrane or band to determine with rubber band provides the proper counter resistance.


RCA Specifications:

• RCA version is wired for the harder hit mode only using RCA connection. If using a clip cord on this version, they are wired opposite of the standard clip cord version, use Positive side DOWN for hard hit, Positive up for a more muted hit.
• This RCA motor housing was designed around a Critical Universal battery pack, but fits with most battery packs I have tried, such as Musotoku, Ink Claw, and Papa.
• This will also work good with a right-angle RCA cord.
• Clip Cord option still works, it is just wired backwards.
• The position of the battery makes the machine’s balance point much more forward, like a pen.

Description:

The most significant update to the V3/24 Sidewinder is the added (and optional) Needle Bar Tensioner. This added tensioner eliminates the need to use a Rubber Band, improving all around machine performance and results. Tensioner reduces spitting and increases power. These machines can be used with or without the Tensioner, it is detached by simply removing the thumbscrew and taking it off the machine.

Aside from the added Needle Bar Tensioner, this new version of remastered V3 Sidewinder is dialed in and updated with various improvements to increase machine longevity and consistency.

The V3/24 follows the same concept as the past V3r, but with a focus on what makes a Sidewinder a Sidewinder.  Hard hitting, effortless, and zippy.  -Intended for experienced artists who don’t want to mess around.

Made in the USA!

All DK Machines sold by Workhorse are engineered, designed, and tested by Dan, milled in his most trusted machine shop, then assembled by DK certified trained technicians at the Workhorse facility in Michigan. All Sidewinders go through rigorous QC checks and are all ran through our testing machine to lightly break in. One year warranty on all models. All current Sidewinders are serviced by Workhorse, some older models are serviced by Dan or one of his certified technicians found on his website.
