BLACK FRIDAY Seth Ciferri Micro Jones Liner Kit

Workhorse Irons

BLACK FRIDAY Seth Ciferri Micro Jones Liner Kit

$210.00 USD $175.00 USD

Grouping	Price	Inventory	Quanity
No Armature Fixture / Alignment Tool	$175.00 USD	Agotado
With Armature Fixture + Alignment Tool	$210.00 USD	Agotado

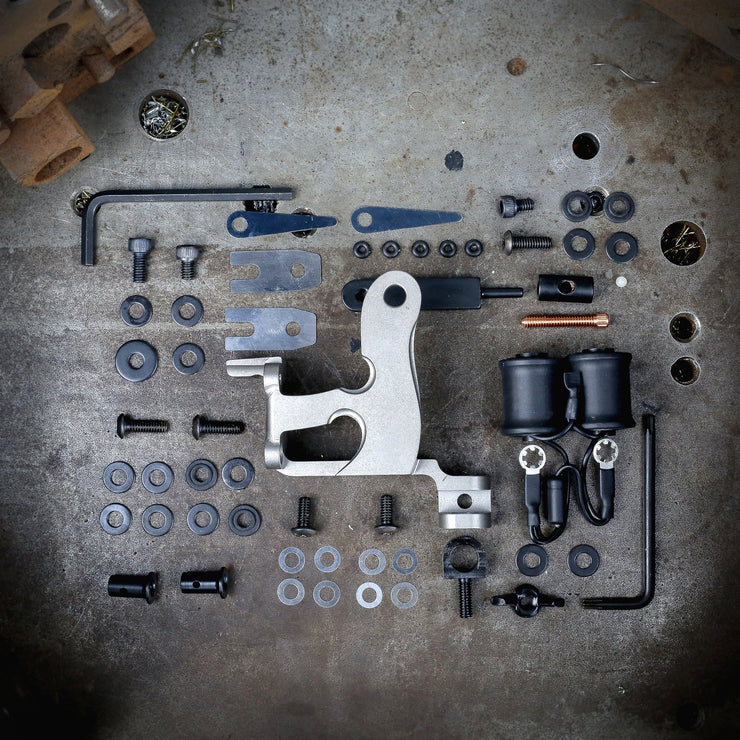

Seth Ciferri Micro Jones Liner Kit! Special edition run of machines at special pricing!

Kit includes all parts needed to build a great tattoo machine...but, it does not include the skills to build a great tattoo machine, sorry not sorry :)

Components:

CNC Cut Iron Micro Jones Liner Frame
Bead Blast Finish Ready for any finish
Seth Deluxe Blackened Hardware
Seth Side Facing Guillotine Vise
Deluxe Blackened Hardware
1" 8 Wrap Custom Soldered Coils
Liner Armature Bar
2 Spring Sets with each kit
All Screws you'll need PLUS necessary wrenches (you will need a flat head screwdriver though)
Washer Package including all washers needed (steel, fiber, and shims)

Typical Liner Specs:

Medium Quick Speed with a Hard Hit
Running 135-140 Hz @ 6 V Unloaded
Pushing 3's to 14's Easy
Weighs 7.2 oz

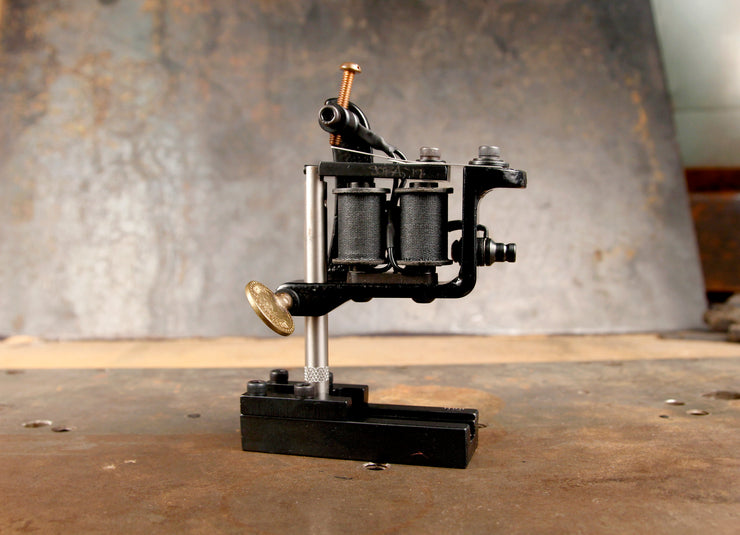

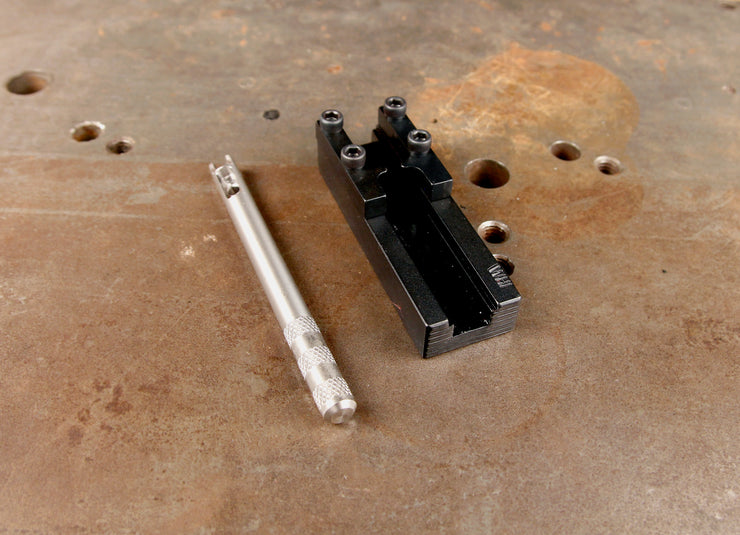

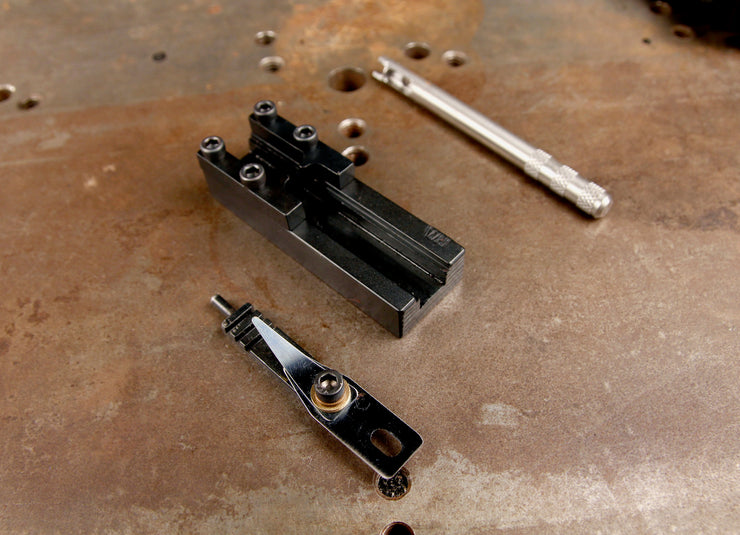

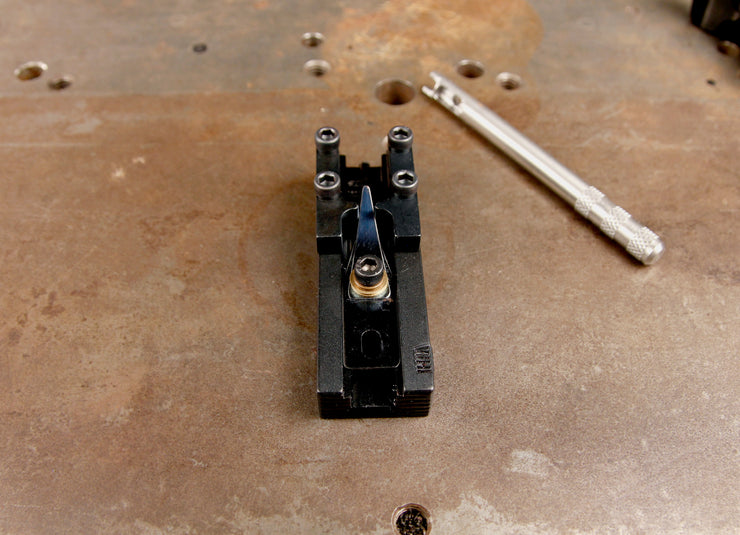

*Comes with or without our Armature Bar Fixture and Alignment Tool. We recommend picking one up if you do not have one, it is by far the best way to assemble your armature bar and springs with proper alignment and tightness.

Made in the USA.

Customer Reviews

Based on 1 review Write a review

Productos relacionados

Guardar $20.00 USD

Marco de revestimiento modelo 6

Workhorse Irons

$105.00 USD $85.00 USD

Agotado

BLACK FRIDAY Seth Ciferri Modern Classic Liner/Shader Combo Machine Kit

Workhorse Irons

$200.00 USD De $165.00 USD

Agotado

BLACK FRIDAY Juan Puente OG Liner Machine Kit

Workhorse Irons

$230.00 USD De $180.00 USD

Agotado

BLACK FRIDAY Juan Puente OG Shader Machine Kit

Workhorse Irons

$230.00 USD De $180.00 USD

Workhorse Irons

Marco de revestimiento modelo 6

$105.00 USD $85.00 USD

Grouping	Price	Inventory	Quanity
Liner	$85.00 USD	Available
Shader	$85.00 USD	Available

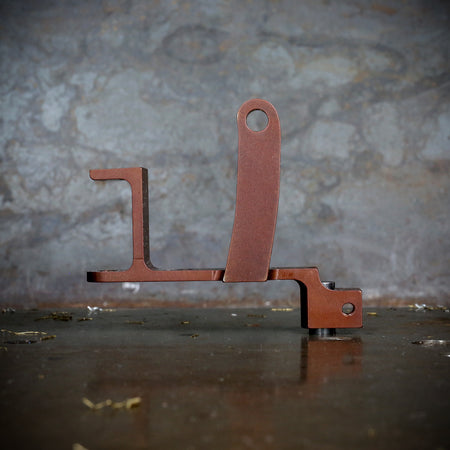

Marco de revestimiento modelo 6

Marco de revestimiento de hierro cortado CNC
Diseñado por Marv Lerning, inspirado en el clásico Waters Model 6
Acabado de zinc negro.
Geometría para Bobinas de 1.25"
Tornillo de banco estándar
pesa 2.9 onzas

Hecho en los EE. UU.

Customer Reviews

Based on 1 review Write a review

Workhorse Irons

BLACK FRIDAY Seth Ciferri Modern Classic Liner/Shader Combo Machine Kit

$200.00 USD $165.00 USD

Grouping	Price	Inventory	Quanity
No Armature Fixture / Alignment Tool	$165.00 USD	Agotado
With Armature Fixture + Alignment Tool	$200.00 USD	Agotado

BLACK FRIDAY x BLACK NOVEMBER Seth Ciferri Modern Classic Liner/Shader Combo Kit! Special edition run of machines at special pricing!

Seth Ciferri Modern Classic Combo Machine Kit - COMBO Kit includes one frame with geometry to build and setup the machine as either a Liner or Shader. Kit includes both Liner and Shader Armature and Springs.

Kit includes all parts needed to build a great tattoo machine...but, it does not include the skills to build a great tattoo machine, sorry not sorry :)

Components:

Lightweight CNC Cut Aluminum Frame
Highly Durable, Oxidation Resistant Anodized Finish
Deluxe Blackened Steel Hardware
Side Facing Guillotine Vise, great for use with Disposable and Steel Tubes
Inlaid 1/4" Iron Coil Yoke for Better Performance and Less Vibration
1" 8 Wrap Custom Soldered Coils
Armature Bar Included works for Liner and Shader Option
2 Liner and Shader Spring Sets
All Screws you'll need PLUS necessary wrenches
Washer Package including all washers needed (steel, fiber, and shims)

Typical Liner Specs:

Medium Quick Speed with a Solid Hit
Running 140-145 Hz at 6V Unloaded
Pushing 3's to 11's No Problem
Weighing in at a mere 5.5 ounces!

Typical Shader Specs:

Medium Speed with a Solid Hit
Running 105-110 Hz at 6V Unloaded
Pushing 5's to 11's No Problem
Weighing in at a mere 5.5 ounces!

*Comes with or without our Armature Bar Fixture. We recommend picking one up if you do not have one, it is by far the best way to assemble your armature bar and springs with proper alignment and tightness.

Made in the USA.

Here are a few words from Seth on the evolution of his "Classic":

In 2003, when BJ and I founded Workhorse Irons, we each had one model available! The frame style I chose was based on what we've come to know as the Coleman style frame, popularized by Paul Rogers, and many who came after, recognizing the versatility and functionality of its geometry. With a few simple adjustments, just about any type of liner or shader can be set up with relative ease. We called it the Classic, in acknowledgment of its well-established lineage.

As thousands of the "Classic" liners and shaders made their way into the hands of tattooers; beginning, established, and everywhere in between, we've been given incredible amounts of feedback about what you have come to desire in an everyday workhorse. Over the years, we've employed a handful of different materials for these machines, mostly cast iron, with some limited editions in brass, aluminum, 3 piece "pre-fab" frames in steel, and eventually CNC machined blocks of "10-00" iron.

Rather than aiming to produce a machine that adheres to the aesthetic and expectations of old-school tattooing, this time we've addressed numerous shortcomings of the average "iron" and have designed a pair of machines with the intent of making them a pleasure to use. Clip cord position and simple vise operation became priorities. If the clip cord can't maintain a solid connection while you work, then your job becomes tedious and annoying. If your vise can't hold any tube or requires the use of extra tools to get them in and out of the machine, then you're wasting valuable time and energy that could be spent making money.

We wanted to create a tool that's lightweight and balanced, yet rigid and strong enough to stay tuned. With an extra-deep pocket for an extra-thick steel yoke, and a drop vise, we've worked around the issue of frame height dictating which tubes are long enough to accommodate standard length needles, and we've placed enough ferrous mass under your magnets to keep them fired up on low voltage, hitting as hard as you want, all day.

Aluminum frames tend to wear at the connections, so we've added a steel insert for long-lasting and dependable clip cord contact. (again, that connection is so important!) To ensure proper alignment, we've added a recessed channel in the spring shelf, and a mated steel cover that sits flush with the front edge, as well as the top.

These aren't tricks, but deliberate updates, each made with the tattooer in mind. The Modern Classic is designed for comfort and dependability and is suitable for use with virtually any grouping. Start off on low voltage, then dial up as you see fit to get the saturation, you're after, at the hand-speed you choose.

-Seth C.

Customer Reviews

Based on 1 review Write a review

Workhorse Irons

BLACK FRIDAY Juan Puente OG Liner Machine Kit

$230.00 USD $180.00 USD

Grouping	Price	Inventory	Quanity
No Armature Fixture / Alignment Tool	$180.00 USD	Agotado
With Armature Fixture + Alignment Tool	$215.00 USD	Agotado

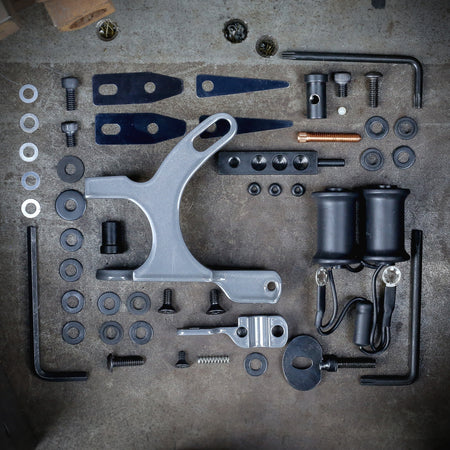

BLACK FRIDAY X BLACK NOVEMBER Juan Puente Liner Kit! Special edition run of machine kits at special pricing!

Kit includes all parts needed to build a great tattoo machine... but it does not include the skills to build a great tattoo machine, sorry not sorry :)

Components:

CNC Cut Iron Juan Puente Frame
Clear Powder Coat Finish
Deluxe Blackened Hardware
Swing Gate Vise Guaranteed to lock tight on any tube
1.25" 6 Wrap Custom Soldered Coils
Liner Armature Bar
2 Spring Sets with each kit
All Screws you'll need PLUS necessary wrenches (you will need a phillips screwdriver though)
Washer Package including all washers needed (steel, fiber, and shims)

Typical Liner Specs:

Medium Speed with a Solid Hit
140-145 Hz at 6.5 V Unloaded
Pushing 3-11's Easy
Weighs 7.2 oz

Made in the USA.

Customer Reviews

Based on 1 review Write a review

Workhorse Irons

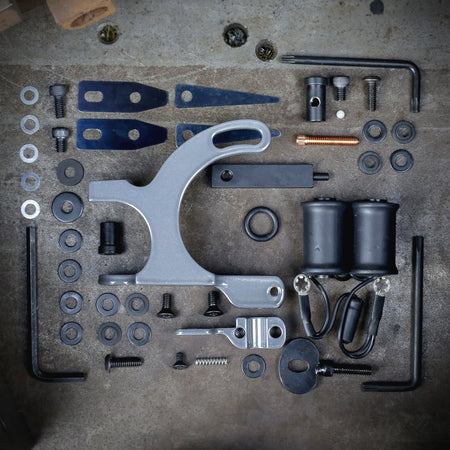

BLACK FRIDAY Juan Puente OG Shader Machine Kit

$230.00 USD $180.00 USD

Grouping	Price	Inventory	Quanity
No Armature Fixture / Alignment Tool	$180.00 USD	Agotado
With Armature Fixture + Alignment Tool	$215.00 USD	Agotado

BLACK FRIDAY X BLACK NOVEMBER Juan Puente Shader Kit! Special edition run of machine kits at special pricing!

Kit includes all parts needed to build a great tattoo machine...but, it does not include the skills to build a great tattoo machine, sorry not sorry :)

Components:

CNC Cut Iron Juan Puente Frame
Clear Powder Coat Finish
Deluxe Blackened Hardware
Swing Gate Vise Guaranteed to lock tight on any tube
1.25" 8 Wrap Custom Soldered Coils
Shader Armature Bar
2 Spring Sets with each kit
All Screws you'll need PLUS necessary wrenches (you will need a Phillips screwdriver though)
Washer Package including all washers needed (steel, fiber, and shims)

Typical Shader Specs:

Slow Speed with a Solid Hit
110-115 Hz at 6 V Unloaded
Pushing up to 13's All Day
Weighs 7.2 oz

Made in the USA

Customer Reviews

Based on 1 review Write a review

BLACK FRIDAY Aaron Cain Roundback Liner Machine Kit

Workhorse Irons

BLACK FRIDAY Aaron Cain Roundback Liner Machine Kit

$215.00 USD $175.00 USD

Grouping	Price	Inventory	Quanity
No Fixture	$175.00 USD	Agotado
Armature Fixture + Alignment Tool	$210.00 USD	Agotado

BLACK FRIDAY X BLACK NOVEMBER Roundback Liner Kit! Special edition run of machines at special pricing!

Kit includes all parts needed to build a great tattoo machine...but, it does not include the skills to build a great tattoo machine, sorry not sorry :)

Aaron Cain Roundback Liner V2.0

Based on the OG Sand Cast Iron Roundbacks Aaron did years ago, now CNC cut with a few improvements!

Highlights:

CNC Cut Iron Frame
Bead Blast Finish Ready for Paint, Powder, or Plating
Deluxe Workhorse Blackened Steel Hardware
1" 8 Wrap Coils

Typical Specifications:

Quick with a Medium Stroke and a Solid Medium Hit
Running 150-155 Hz @ 6.5 V unloaded
Pushing 3's to 9's with ease
Weighs 6.45 oz

Made in the USA.

Customer Reviews

Based on 1 review Write a review

Siguiente: Kit de máquina piloto

Volver a Juegos de máquinas

Siguiente: Kit de máquina piloto

I like the machines a lot

I like the machines a lot. Thnxs!!

Great kit

Great kit. I had it up and running in no time, took very little effort to get it tuned perfectly. Now that I know I love it, I'll probably take it apart and either engrave or paint the frame. But it looks pretty bad ass as is, too....
